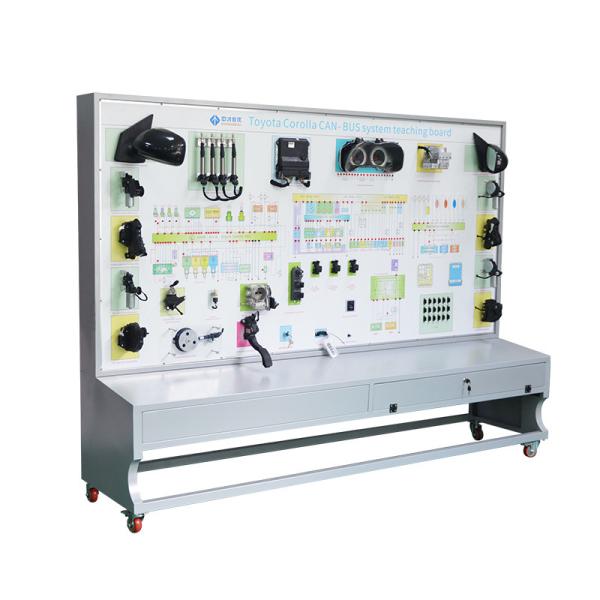

Vehicle CAN-BUS System Training Model Educational Equipment

1. Authentic CAN-BUS Network Structure & Operation

1. Functional Vehicle CAN-BUS System Training Model: Fully demonstrates the architecture of automotive network systems with real operational capabilities.
2. Interactive Signal Simulation: Allows manipulation of circuit components (e.g., gear switches, throttle signals, RPM signals, power window switches, door lock signals, mirror controls) to showcase real-time CAN-BUS data transmission.
3. Automotive-Grade Craftsmanship: Wiring harnesses feature soldered connectors with heat-shrink tubing for insulation, wrapped in protective tape. Fuses and relays meet OEM standards for durability.

2. Smart Teaching & Diagnostic Features

1. Visualized System Monitoring: The panel integrates 4 fuel injector LEDs and a fuel pump indicator to display engine ECU operations.
2. Integrated Testing & Diagnostics: Equipped with test terminals for measuring resistance, voltage, current, and frequency signals. An OBD-II port supports scan tools to read/clear DTCs and data streams from ECUs (e.g., engine, transmission, ABS, comfort systems).
3. Remote Fault Simulation: A wireless remote (10m range) triggers faults corresponding to numbered points on the automotive teaching equipment, enabling hands-on troubleshooting.

3. Robust Design & Teaching Support

1. High-Resistance Panel: Fireproof, moisture-resistant aluminum composite with printed circuit diagrams for clear Vehicle lighting system module and network analysis.
2. Portable Power & Structure: Converts 220V AC to 12V DC with short-circuit protection. Steel frame with locking casters ensures mobility.
3. Comprehensive Training Resources: Includes user manuals, instructional videos, and consumables (e.g., fuses, relays, LEDs) for seamless Vehicle starting system module and Vehicle charging system module training.
